Digital Cyk10 Memosens

Endress+Hauser original product Digital measuring cable CYK10-A101

Description:

Manufacturer : Endress+Hauser

Product No. : CYK10-A101

Product type : CYK10 Digital Measuring Cable

A-Approval : Non-hazardous area

10-Cable Length : 10m

1-Cable Connection : Wire terminals

Memosens data cable for all sensors with Memosens plug-in head

CYK10 guarantees absolute water-proof connection of Memosens sensors to the transmitter.

Maximum process safety through non-contact, inductive and digital signal transmission : No contact corrosion, absolutely watertight, no interference potential.

Increased availability of the measuring point : Digital data transmission provides an automatic error message if the signal is lost.

More flexibility in plant planning and installation : Cable length up to 100 m is possible.

Approved for hazardous area use.

Shipping weight : 1.5 Kg

Additional Informaiton:

CYK10 guarantees absolute water-proof connection of Memosens sensors to the transmitter. Its inductive coupling shows no contact corrosion and guarantees galvanic isolation of transmitter and medium. Simply forget about limited cable length, interfering potentials or moisture and benefit from completely safe and reliable signal transmission.

Benefits

Maximum process safety through non-contact, inductive and digital signal transmission: No contact corrosion, absolutely watertight, no interference potential.

Increased availability of the measuring point: Digital data transmission provides an automatic error message if the signal is lost.

More flexibility in plant planning and installation: Cable length up to 100 m is possible.

Approved for hazardous area use.

Show less

Field of application

The Memosens data cable CYK10 is applied in Memosens systems measuring the following parameters:

pH/ORP

Dissolved oxygen (amperometric)

Conductive conductivity

Disinfection

Features and specifications

pH
Conductivity
Oxygen
ORP / Redox
Disinfection
Measuring principle
Potentiometric

Application

Measuring cable for contactless, inductive, digital transmission of measurement signals

Installation
Inductive plug- head for digital sensors with Memosens technology and wire terminals or M12 plug to connect to the transmitter

Characteristic
Inductive, digital transmission of measurement signals and energy
Not influenced by moisture, EMC-fields and corrosion

Measurement range
High impedance cable not necessary

Design
Easy to handle Bajonett coupling to connect digital sensors with Memosens technology and plug-head
No open contacts, resistant against humidity

Material
Cable sheath: TPE
Junction box: aluminum

Dimension
Diameter: 6.3 mm (0.25 inch)
Cores: 2x2 cores, twisted pairs
Length: up to approx. 100 m (328 ft)

Process temperature
-25 to 135 °C (-13 to 277 °F)

Process pressure
max. 50 bar/725 psi at 135°C/275°F.

Temperature sensor
For digital sensors with inductive plug-head with and without temperature sensor

Ex certification
ATEX II 1G Ex ia IIC T3/T4/T6
FM, CSA IS Cl.1 Div 1 Gr. A-D
ATEX, NEPSI II 3G Ex nL IIC
TIIS

Ingres protection
IP68

Additional certifications
Also available as TÜV approved SIL version

Common Models:

Digital cyk10 memosens

E+H cyk10 memosens

Memosens cyk10 cable

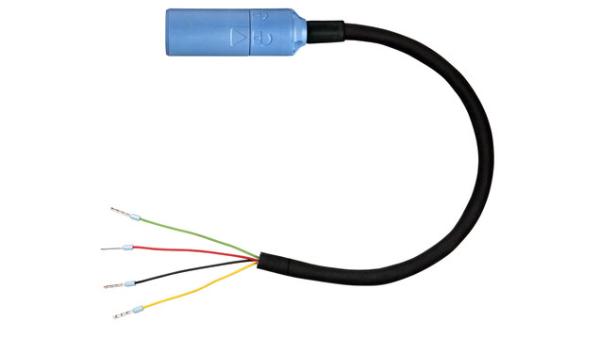

Digital Cyk10 Memosens Images
